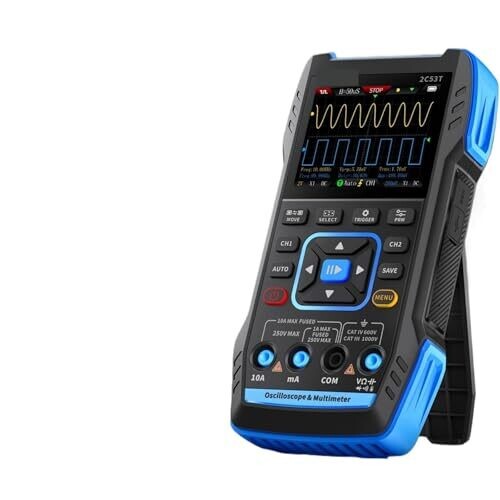

| Models: |
2C23T, 2C53T |
| Display: |
2.8-inch color screen |
| Display resolution: |
320x240 |

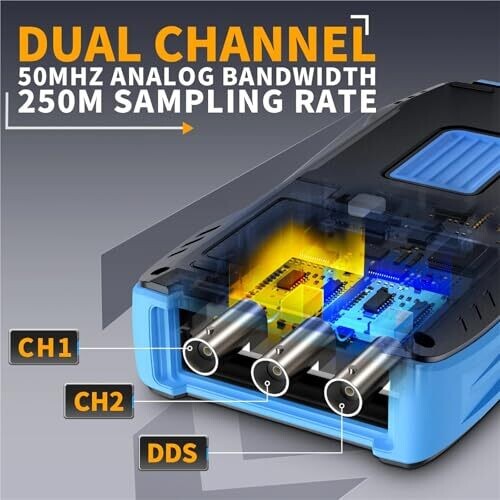

| Digital oscilloscope channels: |
Dual-channel (2C53T); Dual-channel / Single-channel options (2C23T) |
| Oscilloscope waveform memory/storage depth: |
1Kpts (2C53T); 32KB (2C23T) |
| Input impedance: |
1 MOhm |
| Vertical sensitivity: |
10 mV/div to 10 V/div (X1), 20 mV/div to 10 V/div (X1) for specific ranges |
| Time base: |
Wide range including ns to s scales |
| Max voltage: |
±400 V |
| Trigger modes: |
AUTO, Normal, Single |
| Trigger types: |
Rising edge, Falling edge |

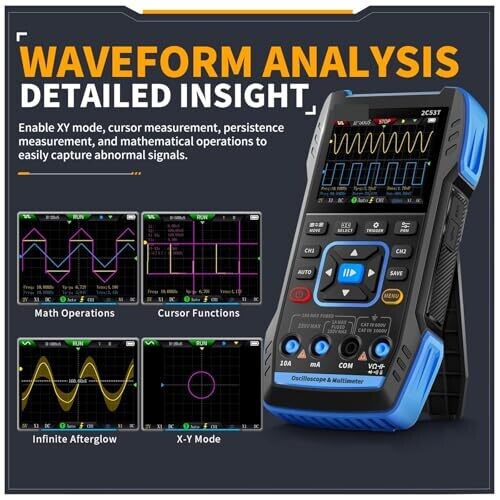

| Display modes: |
Y-T, Scroll, X-Y |
| Coupling: |
AC/DC |
| Persistence: |
OFF, 500 ms, 1 s |
| Waveform export: |
Supported (image export) |
| Waveform capture: |
Supported |
| Math functions: |
Basic operations + FFT (for 2C53T) |
| Signal generator: |
For 2C53T with 13 waveform types; 0–50 kHz output; 0–3 V amplitude; 0–100% duty cycle |
| 2C53T waveforms: |
Sine, Square, Sawtooth, Half Wave, Full Wave, Positive Step, Negative Step, Exponential Rise, Exponential Fall, DC, Multi-audio, Sinker Pulse, Lorentz |
| 2C23T waveforms: |
Sine, Square, Triangle, Full Wave, Half Wave, Noise, DC |
| Output channel: |
2C53T provides dual-channel oscilloscope and single-channel signal output; 2C23T provides dual-channel oscilloscope and single-channel signal output |
| Output frequency ranges: |
0–50 kHz (2C53T); 1 Hz–2 MHz (2C23T) |
| Output amplitude: |
0–3 V (typical) |
| Battery: |
3000 mAh lithium battery |
| Charging: |
USB Type-C (5 V / 1 A) |
| Battery life (theoretical): |
~6 hours |
| Dimensions: |
approximately 167 × 89 × 35 mm |
| Weight: |
approximately 300 g |
| Included in Standard Version: |
Oscilloscope unit ×1, probes ×1, crocodile clips ×1, multimeter probes ×1, USB-C cable ×1, manual ×1, packaging |
| Included in Optional Version: |
Oscilloscope ×1, probes ×2, crocodile clips ×1, multimeter probes ×1, USB-C cable ×1, manual ×1, packaging |
| |
